Configuring Mirah Tablets

On a computer (not the tablet), type the following address into the web browser to access the Kiosk software: https://www.android-kiosk.com/qrcodegenerator.htm

Change the Locale from “GB” to “US"

Enter the Kiosk software Licence Key: [XXXXXX]

Change the Kiosk Url to https://[customer name].mirah.com/patient/welcome

Click the ‘Configure WiFi?’ button and input WiFi settings to be used during tablet configuration

• Note: Leave the Config Url (JSON for automatic configuration)" and "Registration Key (remote management only - 5 characters)" fields blank

Save the QR code in a secure location on your computer / cloud so that it can be used for future use

• Note: You will use this QR code for all tablets

Plug in power cord to charging unit and begin charging tablet until fully charged

•  Note: tablets are typically shipped with at least a 50% charge to start

Start tablet per manufacturer instructions

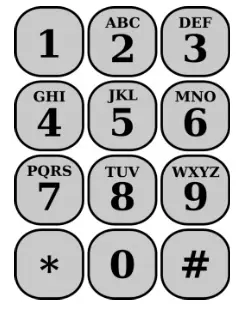

• Note: It is recommended to set the 4 digit code password for your tablet via the following: create the password by converting to the respective phone number of the first 4 letters of your customer site (e.g. Mirah becomes 6472: M = 6, i = 4, r = 7 and a = 2)

Connect to wifi so that you are able to access the internet

Once you are connected to the internet, open the tablet camera as if you are going to take a picture

Scan the Kiosk software QR code on your computer with the camera

Click on the pop-up box to be redirected to the kiosk link

Select the Next button in the bottom right corner of the screen and you will spend several seconds on the screen “Getting ready for work setup…”

Select the Accept & continue button

Select the Next button for the “This device isn’t private” screen

For Google Services, *de-select* the following settings already selected:

• Use location

• Send usage and diagnostic data

Click the “Accept” button

Click the button that states “I have read and agree to all of the above” at bottom of screen and click the Next button

You will see a green Kiosk screen with “Permissions Required” at the top of it that will walk you through the permissions required for the kiosk. After each of the system prompts, press the ‘back’ arrow’ button ( < ) at the bottom right of the screen (NOT the back arrow at the top left of the screen) to go back to the kiosk setup main page.

• Select the arrow icon at the bottom right of the screen and allow all the security prompts,

  • Kiosk Browser - Select “Allow permission”

  • Time Zone - Set the time zone in which the site for that tablet is located

The final page will ask about a Google account - SKIP this step for now

You should find yourself in the kiosk looking at the Mirah Welcome screen

• Press the vertical three dots at the top right of the screen, and go to Settings. Enter the Default Password of 0000

• Make the following Settings changes:

  1. General -> Kiosk Title = Mirah

  2. Display -> Lock Screen OrientationOn,

  3. Display -> Orientation set to Portrait

  4. Toolbar ->Back and Forward icons, TURN OFF

  5. Admin -> Settings Password. Set to the 4 digit code created by the phone number of the first 4 letters of your customer site (e.g. Mirah becomes 6472) - see Tablet Configuration, step 2

• Press the gear (wheel-like) icon in the top right, and select General Management ->  Language and input -> On-screen keyboard -> [Brand] Keyboard -> Smart typing and disablePredictive text

  1. Note: step c above is important to preserve patient confidentiality (do not skip)

Press the square button at the bottom of the screen to return to the Home screen

Ensure that the Mirah patient / client kiosk screen loads on the screen, saying ‘Welcome’

Press the three small vertical dots icon in the top right corner

Select Settings, then enter the tablet password

Press the gear (wheel-like) icon in the top right corner to access System Settings

Select Google Settings, then press the Sign in to your Google Account button, and log in with the Google account you have either just created or already have

Follow the instructions at https://bit.ly/2JzeqYU to enable automatic application updates

Press the home button at the bottom of the screen when done to reset to Kiosk mode

Turn off the device by pressing the three vertical three dots at the top right of the screen, enter the new password, then press the power button.  Select the Power Off icon and then select it again once prompted to confirm
